SEALS & SUPPORT
Rings & sleeves
SiC rings, bushings and sleeves for high-temperature fixtures, seals, susceptors and wear interfaces.
Specify a ring ↗ENGINEERED CERAMICS / CUSTOM COMPONENTS
Silicon carbide ceramics for the moments that test materials.
From semiconductor thermal processing to severe-wear equipment, XINKEHUI helps you specify and source SiC ceramic parts that stay stable under heat, abrasion and demanding process conditions.
SHANGHAI XINKEHUI NEW MATERIALS CO.,LTD
Semiconductor materials and precision components
01Custom geometry
02High-temperature focus
03Export-ready support
04Stable lead-time review
01 / PRODUCT FORMS
One material platform.
Many useful shapes.
Our SiC ceramics page is built around the parts engineers actually specify: dimensions, service conditions, finish and inspection. Send a drawing or sample and we will help translate it into a manufacturable route.
THERMAL PROCESS
Tubes & boats
Process tubes, boats and supports for furnace, diffusion, coating and crystal-growth equipment.
Specify a tube ↗
FLOW & WEAR
Nozzles & custom parts
Wear-resistant nozzles, plates, discs and complex drawing-based parts for process and industrial systems.

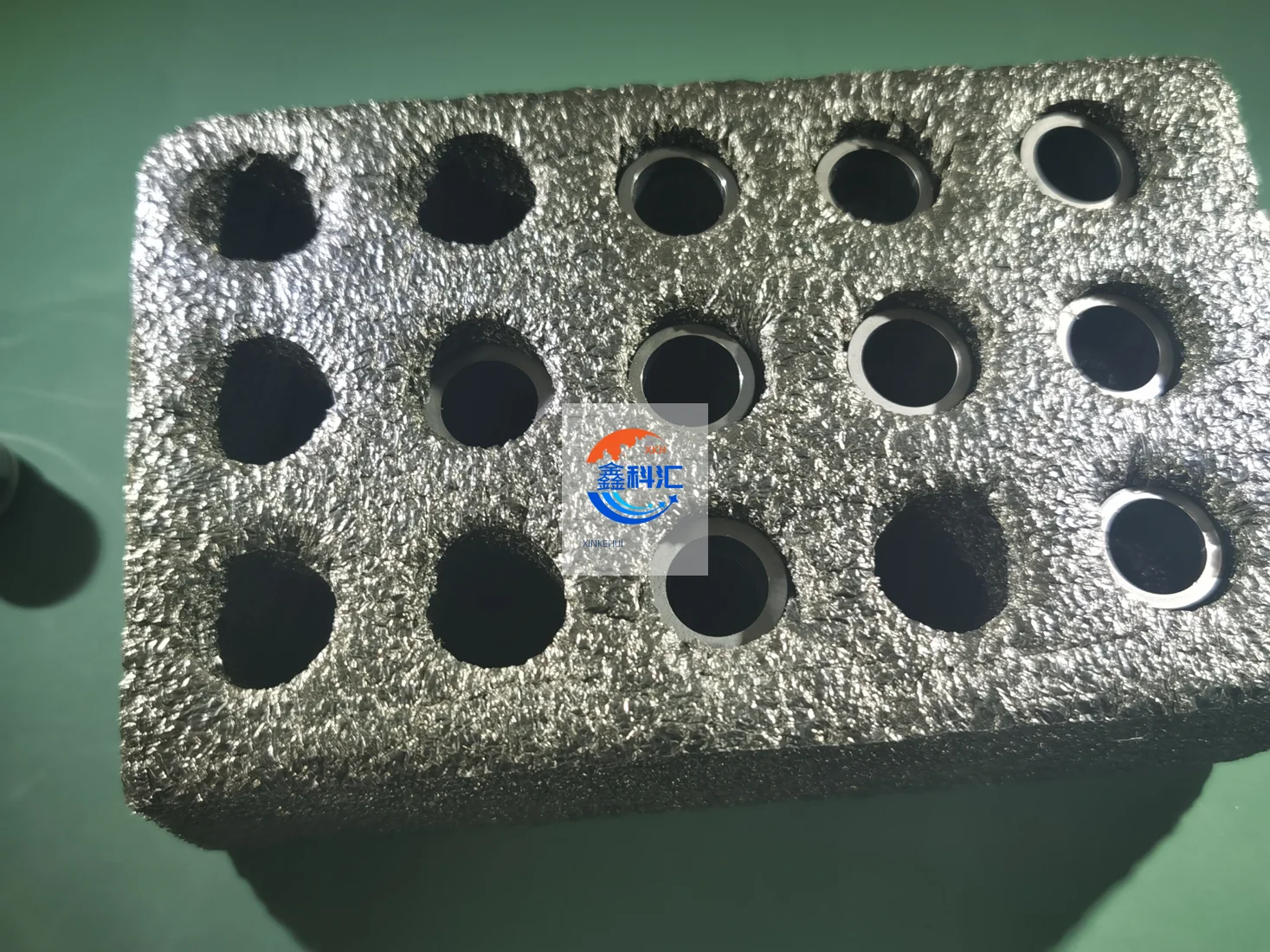

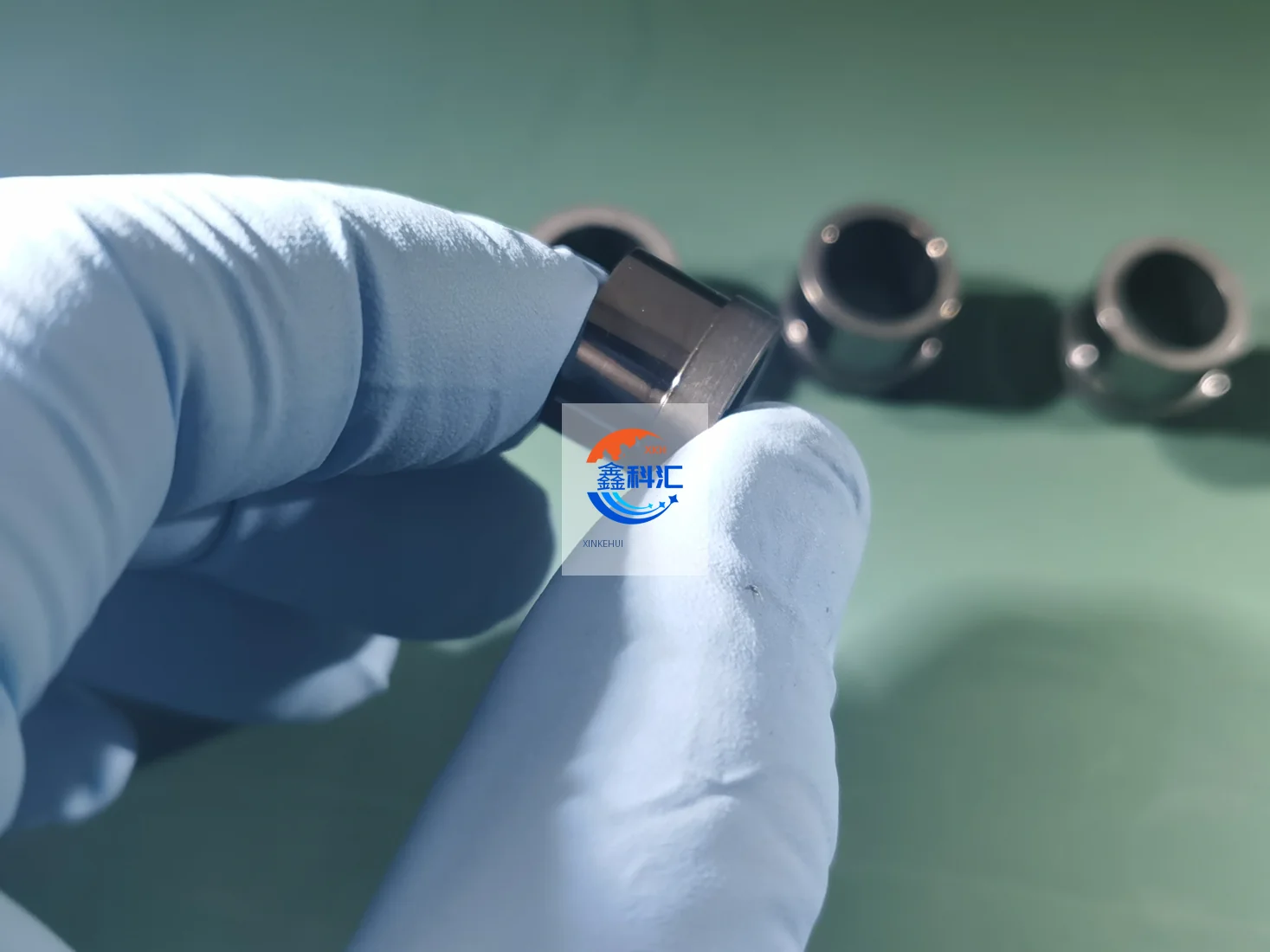

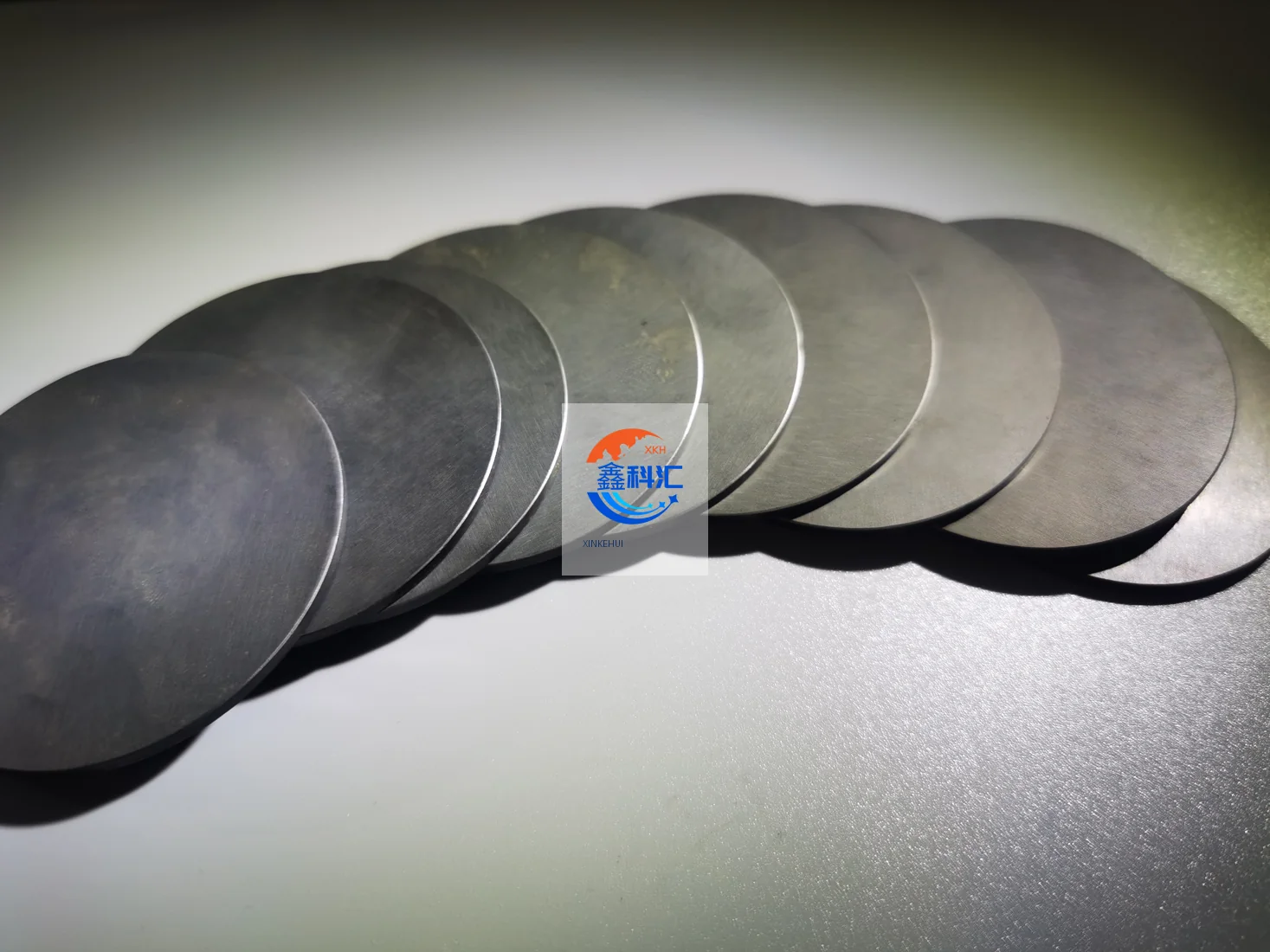

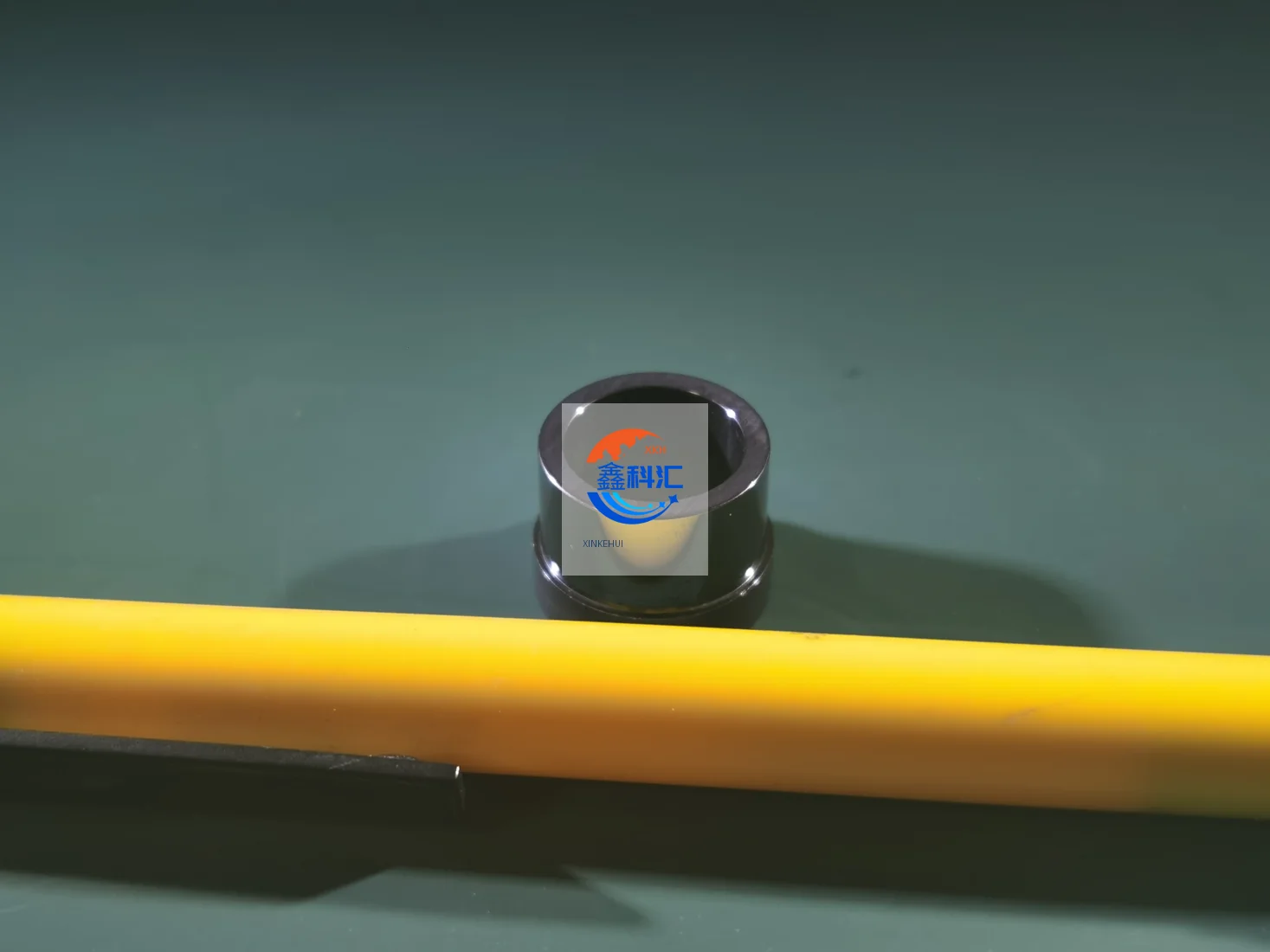

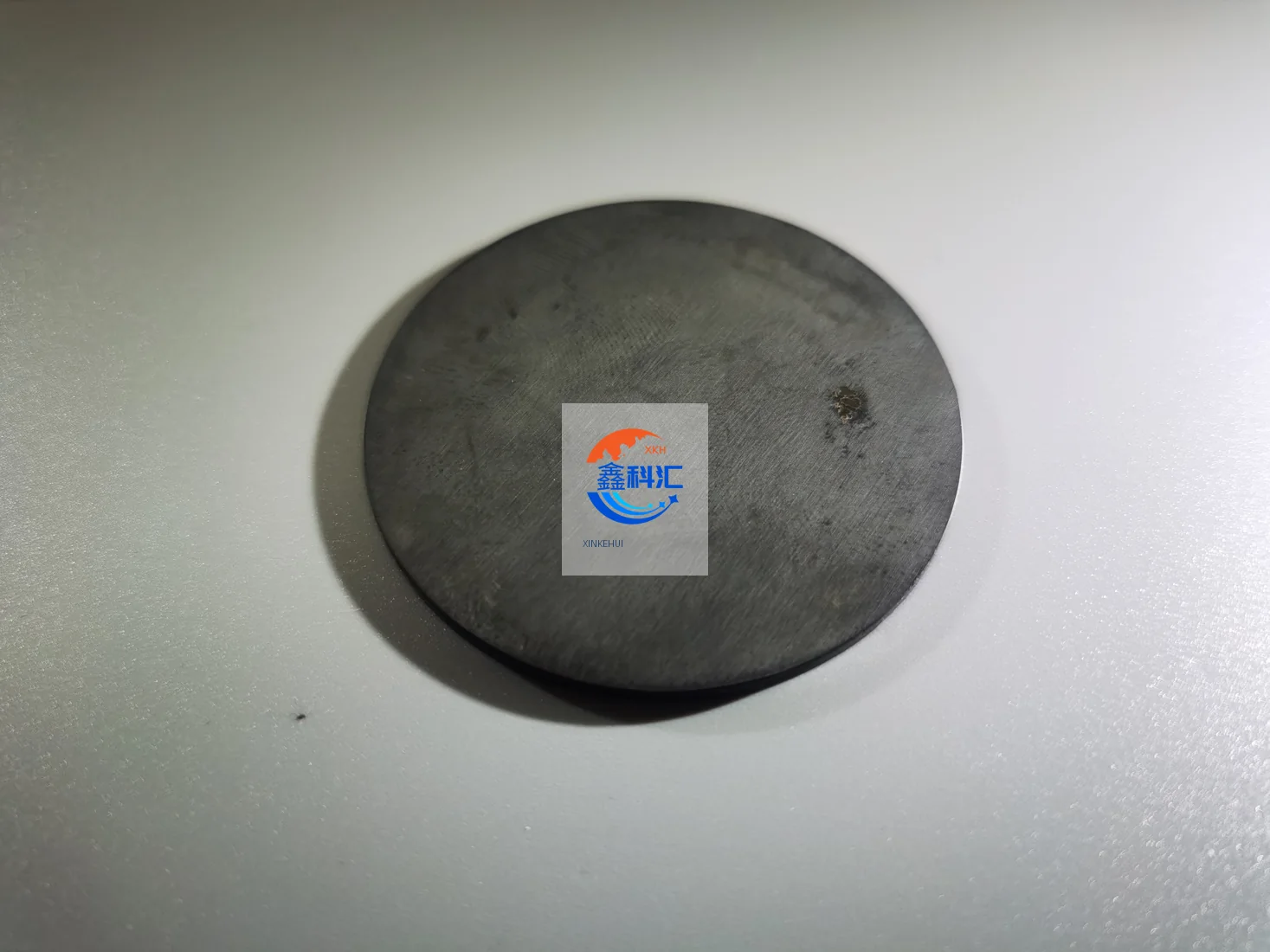

Start a custom part ↗Photographs show representative XINKEHUI SiC ceramic samples. Final material route, dimensions, purity and inspection criteria are confirmed for each order.
02 / APPLICATIONS
Designed around your process.
SiC ceramics are most valuable when the part is matched to the thermal cycle, atmosphere, load and contamination requirements around it.
Semiconductor equipment
Furnace boats, process tubes, susceptors, rings and carriers for thermal treatment, diffusion, coating and wafer handling.
- Low particle and cleanability review
- Geometry matched to fixtures
- Purity and surface requirements agreed
Photovoltaic & crystal growth
High-temperature supports, crucible components and wear interfaces used around demanding crystal and coating processes.
- Thermal-shock considerations
- Large-format and custom drawings
- Packaging for finished surfaces
Industrial wear & flow
Nozzles, liners, seals and plates where hardness, corrosion resistance and dimensional stability matter.
- Abrasive media compatibility
- Wall thickness and edge design
- Replacement-part matching
Thermal & laboratory systems
Research fixtures, high-temperature insulation components and small-batch ceramic parts for repeatable experiments.
- Prototype-to-production review
- Small quantity support
- Traceable specification notes
03 / MATERIAL ADVANTAGES
Why silicon carbide ceramics?
Material advantages are useful only when the grade and geometry match the real operating environment. We keep that distinction clear during technical review.
High-temperature stability
Dense SiC can support demanding thermal cycles and retain useful stiffness in hot environments. Confirm atmosphere, load and thermal gradients for your grade.
Hard, wear-resistant surface
Silicon carbide is selected where abrasive contact and erosion shorten the life of conventional metals or softer ceramics.
Corrosion resistance
SiC can perform in many corrosive process environments. Media chemistry, porosity and temperature must be reviewed together.
Thermal conductivity
Useful thermal conductivity supports heat transfer and fixture response, subject to grade, porosity, thickness and process conditions.
3.0–3.2g/cm³ reference density for dense grades
~1,600°Creference high-temperature capability
Customdrawing, sample and tolerance review
Reference values are technical guidance, not a universal product guarantee. The quotation and agreed inspection plan take precedence.
04 / TECHNICAL REFERENCE
Specify the part, not just the material.
A practical SiC ceramic RFQ combines material route, geometry and operating conditions. The ranges below help start the conversation.
| Material routes | Reaction-bonded SiC; pressureless-sintered SiC; other grades by review |
|---|---|
| Density | Approx. 3.0–3.2 g/cm³ for dense grades |
| Service temperature | Up to approx. 1,600°C in suitable atmospheres |
| Thermal conductivity | Approx. 80–200 W/m·K depending on grade and temperature |
| Hardness | Typically high Mohs hardness; confirm test method and grade |
| Shape capability | Rings, tubes, boats, plates, discs, nozzles, sleeves and custom profiles |
| Surface finish | As-fired, ground, lapped or polished; roughness by drawing |
| Inspection | Dimensions, flatness, concentricity, surface, visual and lot documents as agreed |
| Commercial status | Price, stock and lead time are quotation items; not publicly fixed |
05 / FROM DRAWING TO DELIVERY
A clearer way to buy custom ceramics.
Our process keeps engineering questions visible early, so the final order is easier to manufacture, inspect and repeat.
- 01
Review
We read the drawing, sample and service conditions.
- 02
Recommend
We compare material route, geometry and finish options.
- 03
Confirm
We align acceptance criteria, quantity, packaging and timing.
- 04
Deliver
We coordinate production updates and export-ready packing.
Technical materials.Practical partnership.
06 / ABOUT XINKEHUI
Shanghai expertise, built around your specification.
shanghai xinkehui new materails co.,ltd is a technology company focused on the production and sales of semiconductor and advanced crystal materials.
Our wider portfolio includes silicon wafers, SiC materials, sapphire substrates, CVD synthetic diamond, YAG single crystals, ZnSe windows and sapphire watch components. For silicon carbide ceramics, we focus on clear communication: understand the part, select a workable route, and plan a stable delivery around the confirmed specification.
Custom capabilityDrawing, sample and non-standard requirement review
Stable delivery focusProcess, packaging and timing discussed before order
07 / MATERIAL CLOSE-UP
Real samples. Clear context.

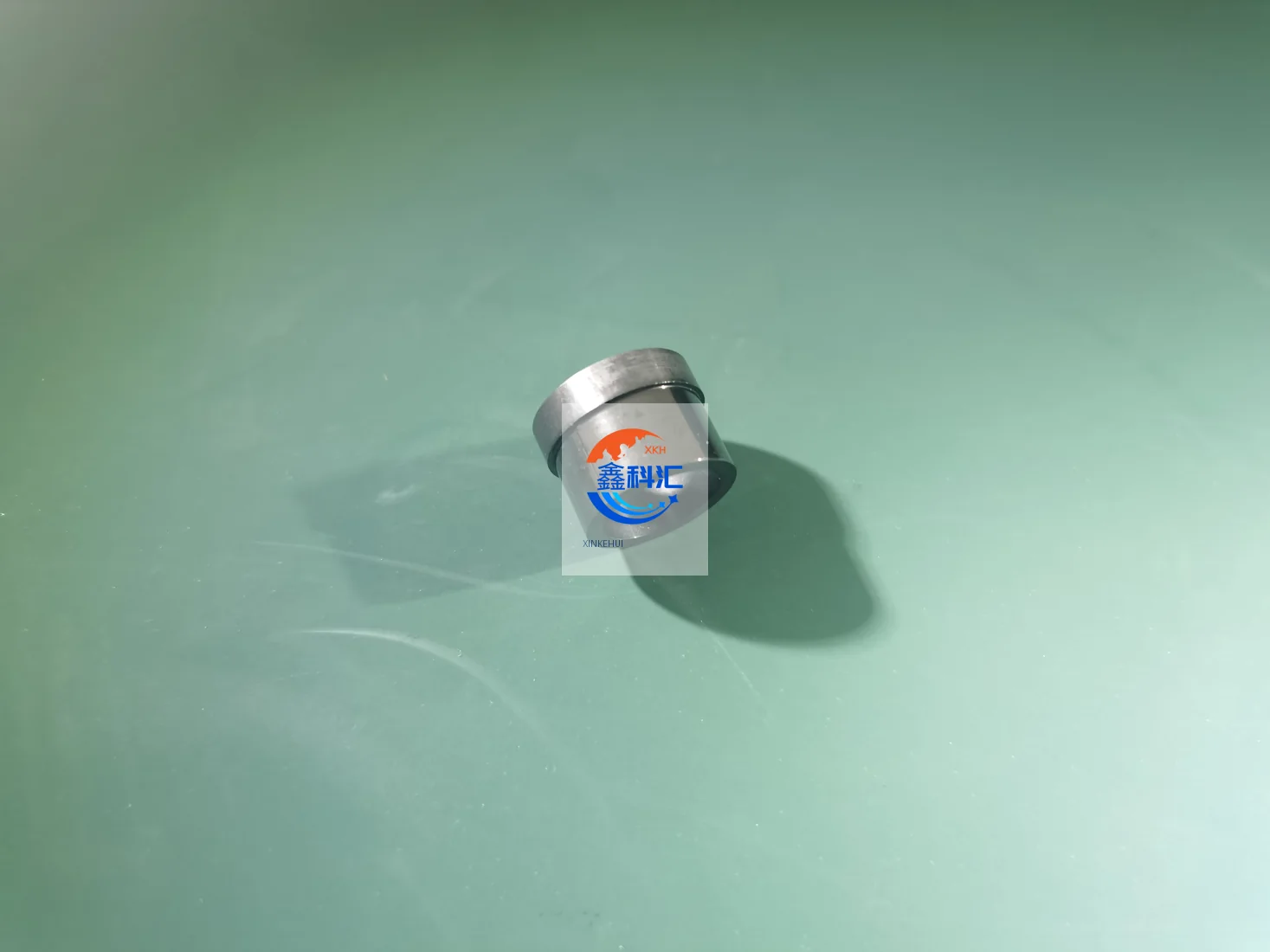

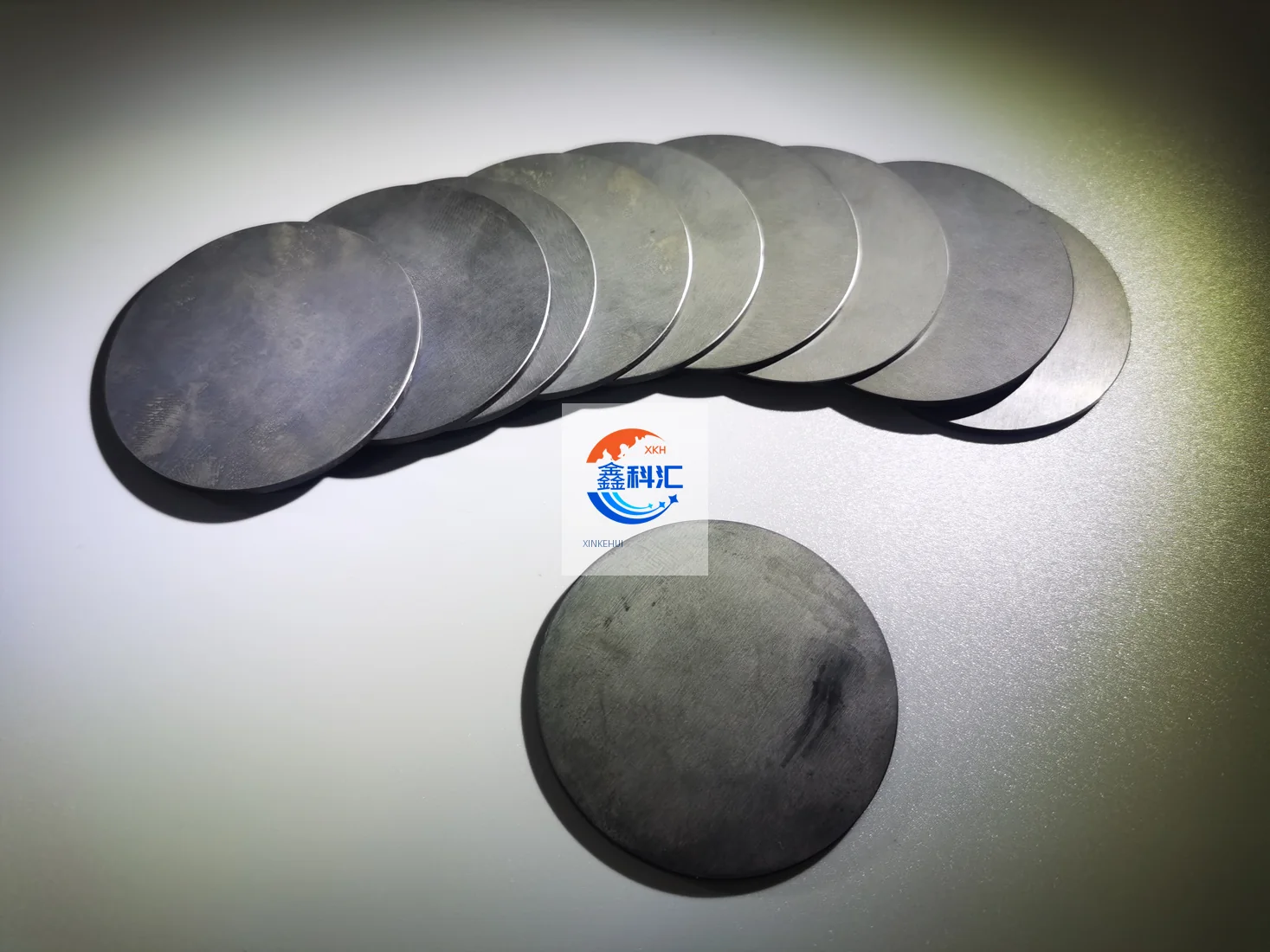

Original product-file photographs are shown with a centered XINKEHUI watermark. Visual appearance is not a substitute for a material certificate or inspection report.
08 / FAQ
Questions engineers ask before they order.
Need a quick answer? Send the drawing and your service conditions. We will reply with the next useful question.
What are silicon carbide ceramics used for?
SiC ceramics are used for high-temperature, wear, corrosion and semiconductor process components such as furnace boats, tubes, rings, susceptors, seals and nozzles.
Which SiC ceramic parts can XINKEHUI make?
We review rings, tubes, boats, plates, discs, sleeves, nozzles and drawing-based custom parts. Feasibility depends on geometry, material route, quantity and inspection.
Can you manufacture from a customer drawing?
Yes. Send a 2D drawing, 3D file or physical sample with material, tolerance, surface and quantity requirements.
What is the difference between reaction-bonded and sintered SiC?
Reaction-bonded SiC can suit complex shapes and dimensional control, while sintered SiC can provide dense, high-purity performance. The right route depends on the process.
What temperature can SiC ceramics withstand?
Dense SiC may be used around 1,600°C in suitable atmospheres. Actual limits depend on grade, atmosphere, load and thermal cycling.
What tolerances are available?
Tolerances are set by the drawing, size and route. We review flatness, concentricity, wall thickness, surface roughness and inspection method together.
Are SiC ceramics suitable for semiconductor equipment?
They can be suitable when purity, outgassing, particles, geometry and cleaning requirements are defined for the application.
Can you supply high-purity SiC?
High-purity requirements can be reviewed. Specify purity target, contamination limits, cleaning method and documentation required.
Do you offer surface machining or polishing?
Machining, grinding, lapping and selected surface treatments can be reviewed against the drawing and service environment.
What should an RFQ include?
Include part drawing, material route or performance target, temperature, atmosphere, media, tolerances, quantity and delivery destination.
What are the price and lead time?
There is no verified public price list or universal lead time. Pricing and delivery are confirmed after technical review.
